Mini Circuit Breaker UL489 Listed 0.5A C Curve 277VAC 60VDC 10kAIC DIN Rail Mount Non Polarized MCB Branch Circuit Protection, ControlGear CGMB1CXY (1 Pole C Trip 0.5 Amp)
Product details
| Management number | 218152664 | Release Date | 2026/05/03 | List Price | US$9.20 | Model Number | 218152664 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- UL-489 CERTIFIED: This miniature circuit breaker provides primary thermal overload and short circuit protection per National Electrical Code, Approved by Underwriters Laboratories for Branch Circuit Protection in US and Canada. The 0.5 amp breaker is UL-489 Listed for Branch Circuit Protection, delivering reliable performance on standard din rail systems for critical circuits.
- MOUNTING OPTIONS: Easily install this circuit breaker by snapping onto a 35mm DIN rail (sold separately). The miniature circuit breaker may also be directly mounted to a panel for all circuit protection applications .
- TECHNICAL SPECS: This UL-489 certified 0.5 amp miniature circuit breaker is calibrated for a 1 Pole C Trip curve profile. Maximum operating voltage is 277VAC and 60VDC with 10kAIC short circuit rating. ControlGear miniature circuit breaker (Model CGMB1C0.5) is ideal for control panels, HVAC equipment and all applications requiring safe and reliable circuit protection.
- RAPID RESPONSE: ControlGear miniature circuit breakers are inherently current limiting, interrupting faults within the first half of the AC cycle, while conventional breakers require 1-2 AC cycles. This provides enhanced protection for power and control circuits.

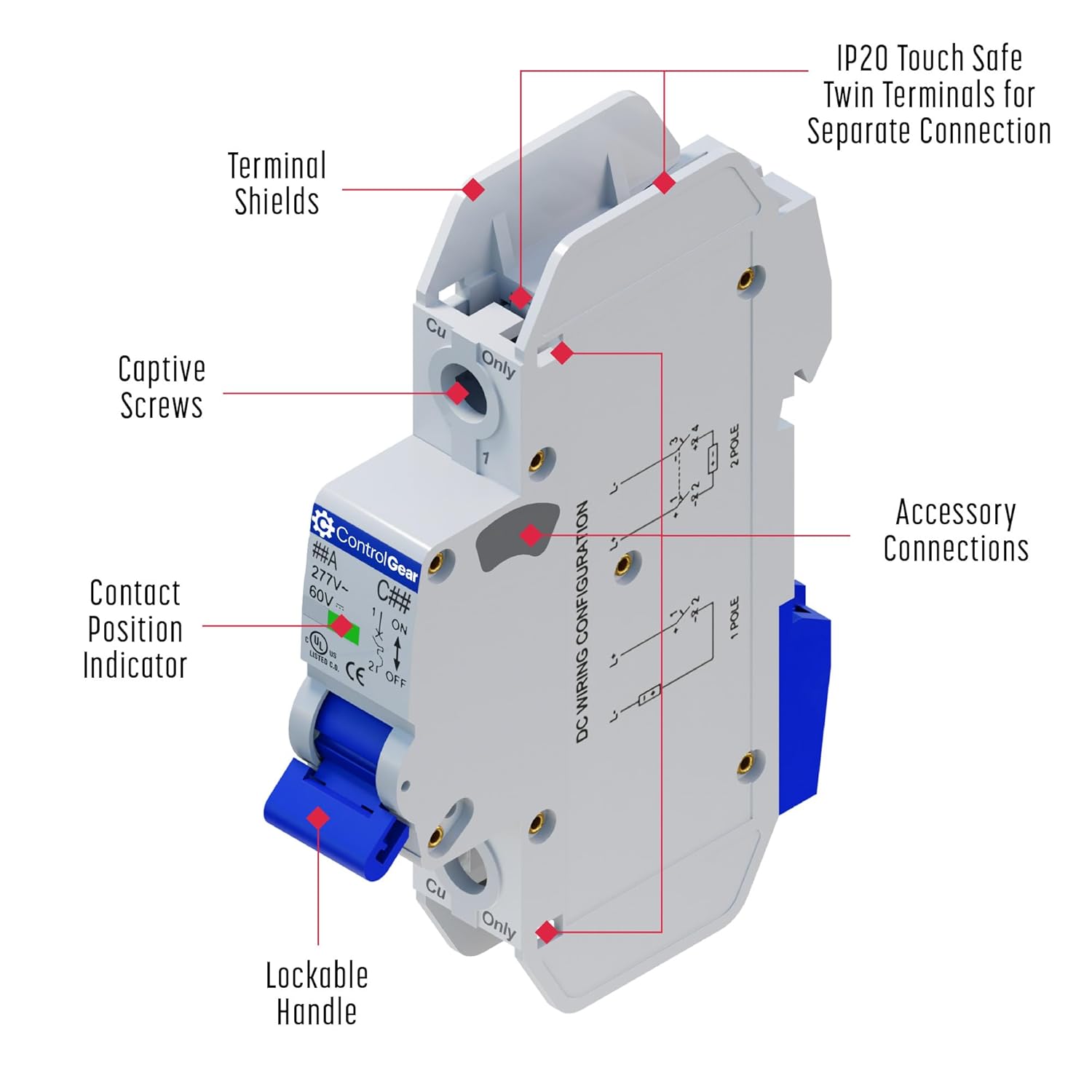

- AVAILABLE ACCESSORIES: Add sophisticated control features with a full line of snap-on accessories, including a shunt trip module, undervoltage release, auxiliary contact and alarm modules, a locking device, and bus bar primary connection system.
| UPC | 850074533009 |
|---|---|
| Model | 1Pole "C"trip 0.5Amps |
| Brand Name | ControlGear |
| Part Number | CGMB1CXY |
| Manufacturer | ControlGear |
| Mounting Type | DIN Rail Mount |
| Current Rating | 0.5 Amps |
| Number of Poles | 1 |
| Circuit Breaker Type | Miniature Circuit Breaker |
| Smart Home Compatibility | Not Smart Home Compatible |
